Handhole & Manhole Plate Replacement Guide

When it comes to boiler maintenance, one of the most commonly replaced parts is the handhole plate or manhole plate. Together, our full range of handhole and manhole plates covers nearly every boiler make and model. These essential components seal the boiler shell and keep it operating efficiently and safely. If you’re in need of a replacement handhole or manhole plate but aren’t sure where to start, Oswald Supply is here to help. With nearly a century of experience, we have the expertise to guide you through the process, no matter how much or how little information you have.

Information You’ll Need Before Ordering a Replacement Handhole or Manhole Plate

To narrow your search for the correct handhole or manhole plate, having a few key details on hand makes all the difference:

1. Size: measure the width and length of the plate, ideally using the hole in the boiler’s shell or the inside dimensions of the plate itself, avoid measuring the gasket.

2. Shape: the most common handhole and manhole plates are elliptical (egg-shaped) or obround (racetrack-shaped). Less common shapes like round, diamond, or pear may require a sample or drawing for a custom match.

3. Flat or curved: determine whether the plate is flat or formed to match the boiler shell’s curve. Curved plates may be formed on the long axis (Y-type) or short axis (Z-type), depending on the boiler.

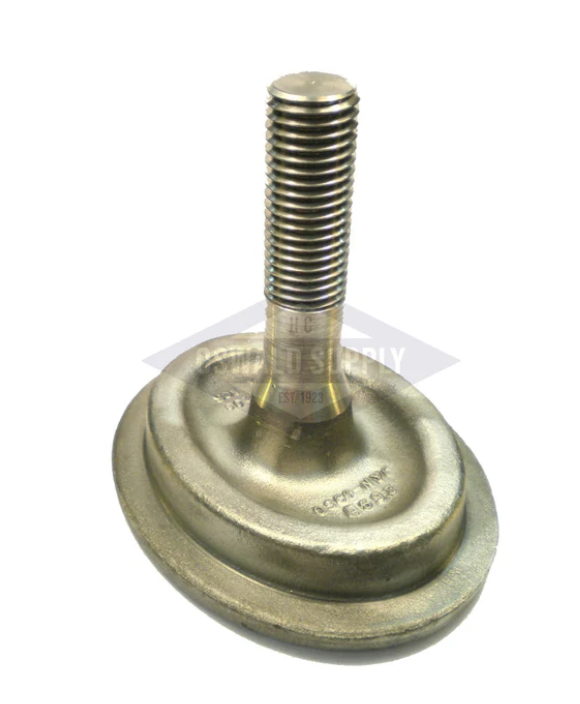

4. Bolt type: identify whether the plate uses loose or solid bolts. Loose bolts suit tight spaces; solid bolts offer more stability elsewhere.

5. Boiler’s working pressure: boilers are classified as low, medium, or high pressure, and plates for high-pressure boilers must meet specific strength and material standards.

6. Material: handhole and manhole plates are typically cast iron or forged steel. Cast iron suits low-pressure applications, while forged steel is rated for both high- and low-pressure use.

7. Boiler manufacturer and model: knowing the manufacturer, model number, or horsepower can be invaluable in finding the right plate.

Measuring for Accuracy

If you’re unsure of your plate’s size, proper measurements are critical. Use a caliper to measure the inside dimensions of the plate itself, focusing on the gasket seat rather than the gasket, which may be deformed or incorrect. This ensures the replacement fits perfectly against the boiler shell.

Identifying Handhole and Manhole Plate Shapes

Understanding the shape of your plate is essential to a correct match. Elliptical plates resemble an egg, while obround plates have parallel sides like a racetrack. Oswald Supply offers custom manufacturing for less common shapes such as diamonds or pears, provided you can supply a sample or technical drawing.

Flat vs. Curved Plates

Curved plates are common in Scotch Marine boilers, vertical shell boilers, and pressure vessels, where the plate must follow the shell’s curve. Flat plates, by contrast, are typically used in firebox or locomotive-style boilers. To tell the two apart, examine the gasket seat flange, curved plates often look flat on the underside but curve along the gasket seat itself.

Bolt Types and Retro-Fit Assemblies

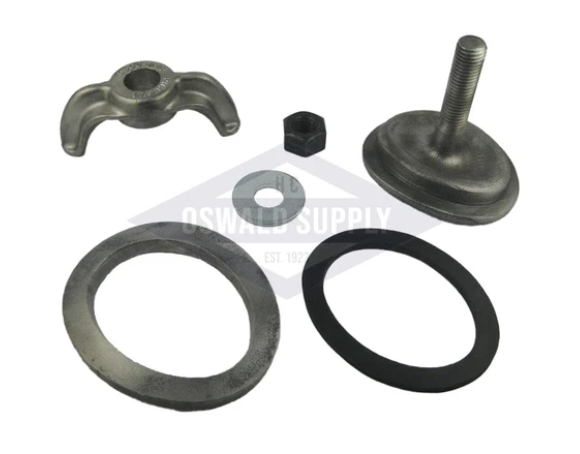

Handhole and manhole plates use either loose or solid bolts and hardware. Loose bolts suit tight spaces, while solid bolts offer more durability and are available with offset studs for easier installation. Oswald Supply offers Retro-Fit Handhole Plate Assemblies in two configurations, with ring and less ring, depending on what your installation needs. Each assembly includes a patch ring, flat plate, gasket, and yoke, eliminating the need to carry multiple sizes and types of plates. Both are available in cast iron and forged steel, covering low- and high-pressure applications.

Material Matters: Cast Iron vs. Forged Steel

Choosing the right material matters for both safety and longevity. Cast iron plates suit low-pressure applications, while forged steel plates handle pressures up to 1,050 PSI at 650°F, making them the right call for high-pressure boilers.

Expert Assistance Since 1923

If you’re still unsure about your handhole or manhole plate requirements, Oswald Supply’s knowledgeable team is ready to help. Our reference charts date back to 1923, letting us track down the right plate even with limited information, just provide details like the boiler’s manufacturer, model number, or horsepower, and we’ll do the rest.

FAQs: Handhole & Manhole Plate Replacement

What’s the difference between a handhole and a manhole plate?

Both seal an opening in the boiler shell used for inspection and cleaning, handhole plates are generally smaller and used for hand access, while manhole plates cover a larger opening sized for a person to enter. The measuring and material principles are the same for both.

How do I measure a handhole or manhole plate for replacement?

Use a caliper to measure the inside dimensions of the plate itself, not the gasket, which can be deformed, focusing on the gasket seat for an accurate fit.

Are handhole plates cast iron or forged steel?

Both are available. Cast iron suits low-pressure boilers, while forged steel handles pressures up to 1,050 PSI at 650°F and is the better choice for high-pressure systems.

Do I need the ring, gasket, and yoke separately, or as a kit?

Oswald Supply’s Retro-Fit Handhole Plate Assemblies bundle the patch ring, flat plate, gasket, and yoke together (available with or without the ring) so you don’t need to source each component separately.

Order Your Replacement Handhole or Manhole Plate Today

For personalized assistance, contact Oswald Supply today. Our experts will help get your boiler back to optimal working condition with the correct handhole or manhole plate replacement, the first time.
