The Pro series provides all of Panasonic's component design and manufacturing quality assurance. These heating and cooling single zone mini-split units are designed to 16 SEER to provide high-value, energy efficiency, comfort and long-life operation.

*Parts sold separately - line sets, communication wires, disconnects, and pads not included

Key Features

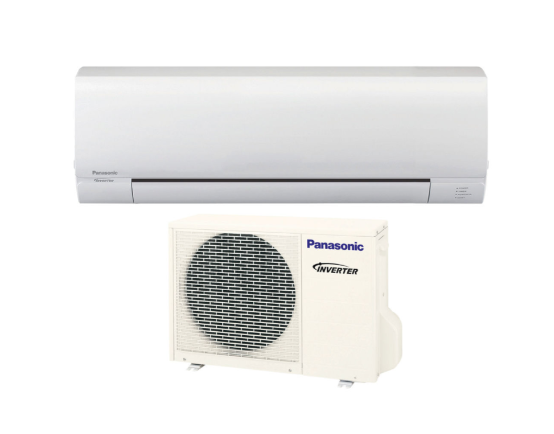

Indoor Unit CS-RE9SKUA

Outdoor Unit CU-RE9SKUA

• Line set required but not included - 1/4" x 3/8"
• Communication wires required but not included - 14/4
• Capacity Cooling (Btu/h) / KW – 9,000
• Capacity Heating (Btu/h) / KW – 10,900
• Moisture Removal High (pints/H) – 1.3
• Dry Air Flow – High (CFM) – 425
• SEER2 – 16.00
• EER2 – 10.45
• HSPS2 – Region 4 / Region 5 – 8.50 / 7.00
• Power Supply (V, pHase, Hz) – 208 / 230V, 1PH, 60Hz
• Running Amps – Cooling (A) – 4.2 / 3.8
• Running Amps – Heating (A) – 4.6 / 4.2
• Power Input - Cooling (W) – 860(250-1,000)
• Power Input – Heating (W) – 950(200-1,500)
• Fuse or Circuit Breaker Capacity (A) – 15
• Controls – Microprocessor
• Low Ambient Control – Built-in
• Wireless Remote Controller – Included
• Fan Speeds – 5 Speeds + Auto
• Timer – 24 hr Program
• Air Deflection Horizontal – Manual
• Air Deflection Vertical – Automatic
• Air Filter – Washable
• Refrigerant – R-410A
• Refrigerant Control – Electric Expansion Valve
• Operation Sound – Indoor (Hi/Me/Lo) (dB-A) – 43 / 35 / 32
• Operation Sound – Outdoor (Hi) (dB-A) – 49
• Refrigerant Piping – Type – Flare
• Refrigerant Piping – Discharge (in) – 1 / 4
• Refrigerant Piping – Suction (in) – 3 / 8
• Refrigerant Pipe Length – Max. 49.2
• Elevation Difference Outdoor Above (ft) – Max. 49.2
• Height Indoor (Inches) – 11-7/16”
• Height Outdoor (Inches) – 21-11 / 32”
• Width Indoor (Inches) – 34-9 / 32”
• Width Outdoor (Inches) – 30-23 / 32”
• Depth Indoor (Inches) – 8-7 / 16”
• Depth Outdoor (Inches) – 11-13 / 32”
• Net Weight Indoor (Lbs.) – 20
• Net Weight Outdoor (Lbs.) – 75
