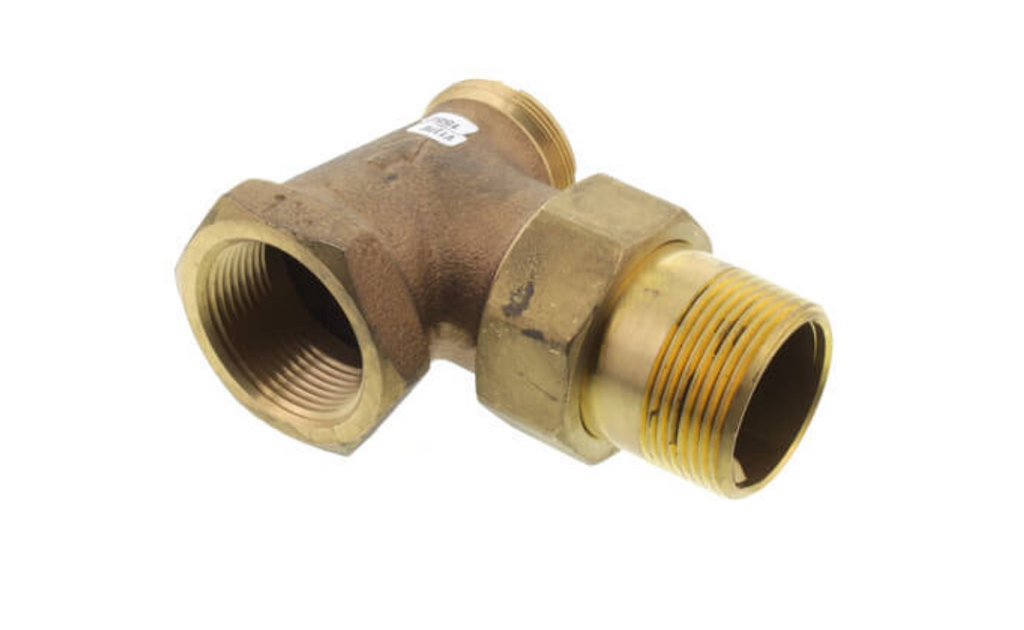

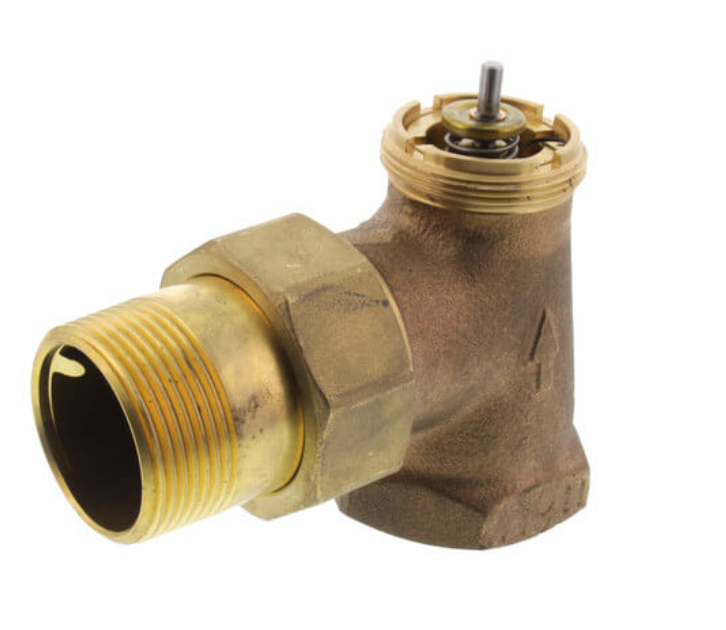

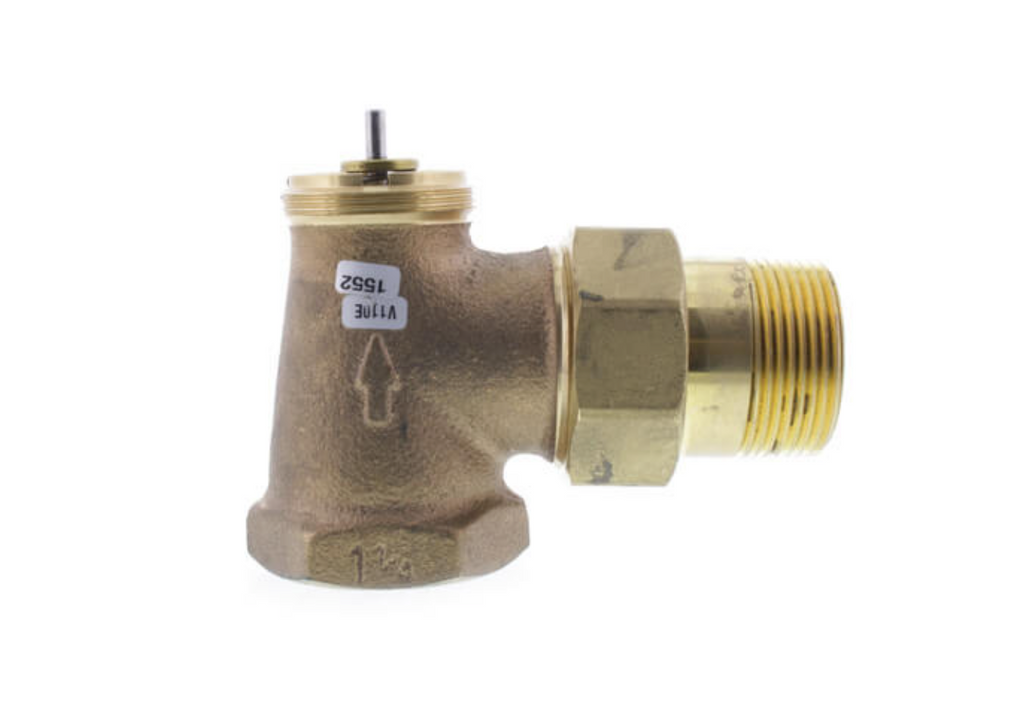

High Capacity Thermostatic Radiator Valves provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements
Product Features
- Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
- Designed with the higher capacity normally required by U.S.A. heating systems
- Valve seat discm which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
- Require no electrical connections.
- All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Valves may also be used with MV110 Electric Zone Valve Actuator.
- Meet ASHRAE Standard 102-1989.
Product Specifications
- Application Type : Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units when used with T104 Thermostatic Actuators
- Pipe Size (inch): 1 1/4 in.
- Pipe Size (DN): DN32
- Body Pattern: Angle
- Capacity: high
- Capacity (Cv): 8 Cv
- Capacity (Btu/hr-steam): 193,000 Btu/hr
- Connection Type: Threaded
- Pressure Ratings (Hot Water (psi): 150 psi maximum
- Pressure Ratings (Hot Water (kPa): 1034 kPa maximum
- Pressure Ratings (Steam (psi): 15 psi maximum
- Pressure Ratings (Steam (kPa): 103 kPa
- Differential Pressure Ratings (psi): 17 psi maximum
- Temperature Ratings (F): 248 F Maximum
- Temperature Ratings (C): 120 C Maximum
- Materials (Body): Bronze
- Used With: T104
