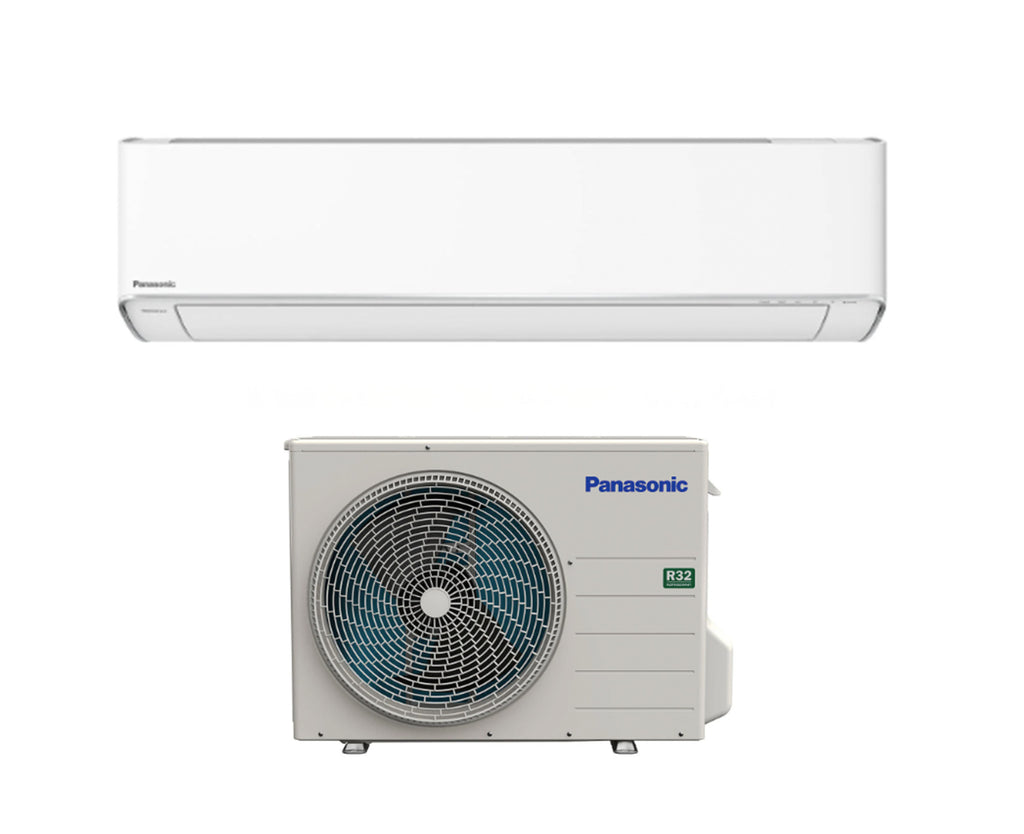

Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X — a built-in air and surface purification technology that provides a comfortable environment for everyone.
*Parts sold separately - line sets, communication wires, disconnects, and pads not included
Product Specifications
- Indoor Unit - CS-XZ24AKUAW
- Outdoor Unit - CU-XZ24AKUAC
- Line set required but not included - 1/4" x 5/8"
- Communication wires required but not included - 14/4
- Capacity Cooling (Btu/h) / KW - 24,000 (6,100 - 27,200) / 7.02 KW
- Capacity Heating (Btu/h) / KW - 28,800 (6,800 / 37,200) /8.46 KW
- Moisture Removal - High (pints/H) - 7.6
- Indoor Air Flow - Cool/Heat (High) - 685/695 CFM
- SEER2 - 20.50
- EER2 - 11.75
- HSPF2 - REgion 4 / Region 5 - 11.00 / 8.30
- Power Supply (V, Phase, Hz) - 208 / 230V, Single Phase, 60Hz
- Power Input - Cooling (W) - 2040
- Power Input - Heating (W) - 2500
- Dimensions (indoor) (H x W x D) - 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm)
- Dimensions (Outdoor) (H x W x D) - 24-1/2" x 32-15/32" x 11-25/32" (622 x 824 x 299 mm)
- Weight (indoor/outdoor) - 31lbs / 110lbs
Panasonic Limited Warranty
Rebate Program
Return Policy
- 25% Restocking Fee
- Oswald Supply must pre-approve all RMAs (Return Material Authorizations)
- Freight on return must be covered
- All material must be in its original pacjaging and in 100% resalable condition unless deemed defective
- The customer is responsible for return shipping, return labels are not provided.
- Obsolete and discontinued models are not eligible for return
