Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X — a built-in air and surface purification technology that provides a comfortable environment for everyone.
*Parts sold separately - line sets, communication wires, disconnects, and pads not included
Product Specifications

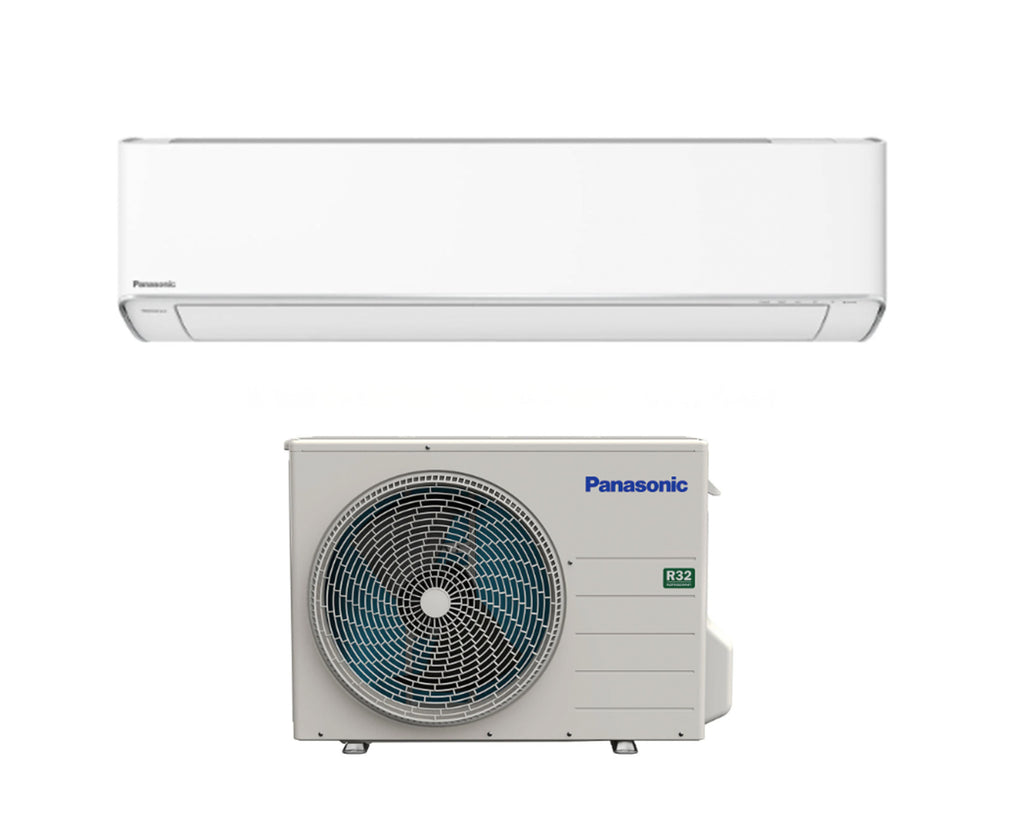

- Indoor Unit - CS-XZ9AKUAW
- Outdoor Unit - CU-XZ9AKUAC
- Line set required but not included - 1/4" x 3/8"
- Communication wires required but not included - 14/4
- Capacity Cooling (Btu/h) / KW - 8,700 (2,900 - 12,600) / 2.55KW
- Capacity Heating (Btu/h) / KW - 10,900 (3,200 - 19,900) / 3.21KW
- Moisture Removal - High (pints/H) - 1.3
- Indoor Air Flow - Cool/Heat (High) - 410/435 CFM
- SEER2 - 27.5
- EER2 - 16.4
- HSPF2 - REgion 4 / Region 5 - 12.00 / 9.20
- Power Supply (V, Phase, Hz) - 208 / 230V, Single Phase, 60Hz
- Power Input - Cooling (W) - 530
- Power Input - Heating (W) - 670
- Dimensions (indoor) (H x W x D) - 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm)
- Dimensions (Outdoor) (H x W x D) - 24-1/2" x 32-15/32" x 11-25/32" (622 x 824 x 299 mm)
- Weight (indoor/outdoor) - 24lbs / 79lbs
