The Panasonic EXTERIOS Z series is a wall mounted heating and cooling mini-split heat pump. AI ECO intelligently balances energy savings and comfort. With great energy efficiency and -26°C (-15°F) heating operation, this model is often selected for rebate programs and cold climate solutions.
*Parts sold separately - line sets, communication wires, disconnects, and pads not included
Key Features

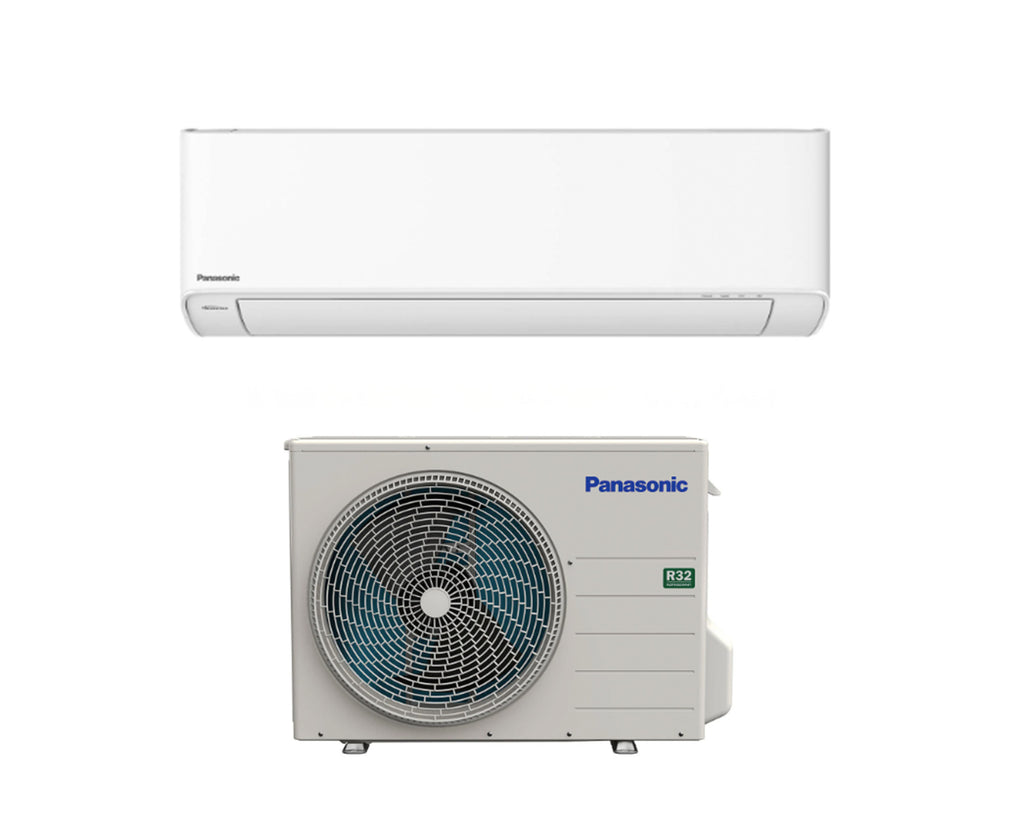

- Indoor Unit - CS-Z12AKUAW
- Outdoor Unit - CU-Z12AKUAC
- Line set required but not included - 1/4" x 3/8"
- Communication wires required but not included - 14/4
- Capacity Cooling (Btu/h) / KW - 11,500 (2,900 - 16,100) / 3.36 KW
- Capacity Heating (Btu/h) / KW - 12,000 (3,200 - 23,600) / 3.51 KW
- Moisture Removal - High (pints/H) - 2.5
- Indoor Air Flow - Cool/Heat (High) - 430 / 460 CFM
- SEER2 - 25
- EER2 - 14.35
- HSPF2 - REgion 4 / Region 5 - 11.70 / 8.90
- Power Supply (V, Phase, Hz) - 208 / 230V, Single Phase, 60Hz
- Power Input - Cooling (W) - 800
- Power Input - Heating (W) - 790
- Dimensions (indoor) (H x W x D) - 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm)
- Dimensions (Outdoor) (H x W x D) - 24-1/2" x 32-15/32" x 11-25/32" (622 x 824 x 299 mm)
- Weight (indoor/outdoor) - 24lbs / 79lbs
Panasonic Limited Warranty
Rebate Program
Return Policy
- 25% Restocking Fee
- Oswald Supply must pre-approve all RMAs (Return Material Authorizations)
- Freight on return must be covered
- All material must be in its original pacjaging and in 100% resalable condition unless deemed defective
- The customer is responsible for return shipping, return labels are not provided.
- Obsolete and discontinued models are not eligible for return
