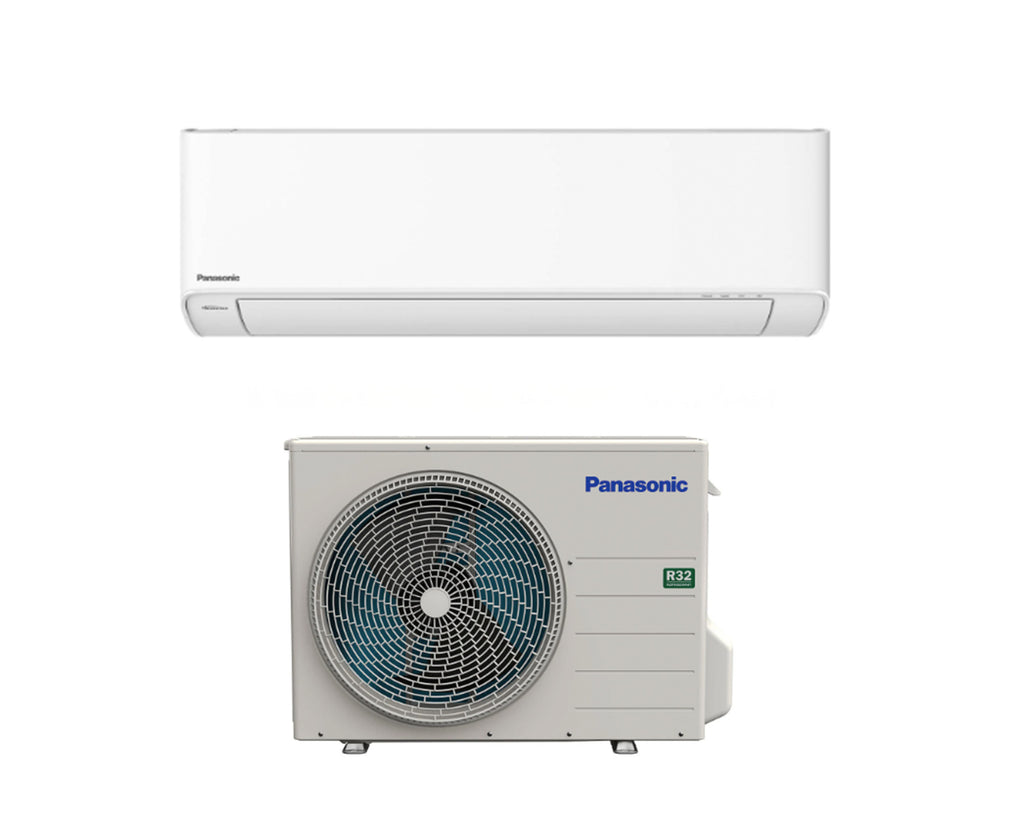

The Panasonic EXTERIOS Z series is a wall mounted heating and cooling mini-split heat pump. AI ECO intelligently balances energy savings and comfort. With great energy efficiency and -26°C (-15°F) heating operation, this model is often selected for rebate programs and cold climate solutions.
*Parts sold separately - line sets, communication wires, disconnects, and pads not included
Key Features
- Indoor Unit - CS-Z18AKUAW
- Outdoor Unit - CU-Z18AKUAC
- Line set required but not included - 1/4" x 1/2"
- Communication wires required but not included - 14/4
- Capacity Cooling (Btu/h) / KW - 17,200 (6,100 - 22,200) / 5.04 KW
- Capacity Heating (Btu/h) / KW - 20,400 (6,800 - 30,400) / 5.97 KW
- Moisture Removal - High (pints/H) - 3.6
- Indoor Air Flow - Cool/Heat (High) - 610 / 630 CFM
- SEER2 - 22.00
- EER2 - 13.65
- HSPF2 - REgion 4 / Region 5 - 11.70 / 8.80
- Power Supply (V, Phase, Hz) - 208 / 230V, Single Phase, 60Hz
- Power Input - Cooling (W) - 1260
- Power Input - Heating (W) - 1540
- Dimensions (indoor) (H x W x D) - 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm)
- Dimensions (Outdoor) (H x W x D) - 24-1/2" x 32-15/32" x 11-25/32" (622 x 824 x 299 mm)
- Weight (indoor/outdoor) - 31lbs / 110lbs
